Committed to the cause of china extrusion die development

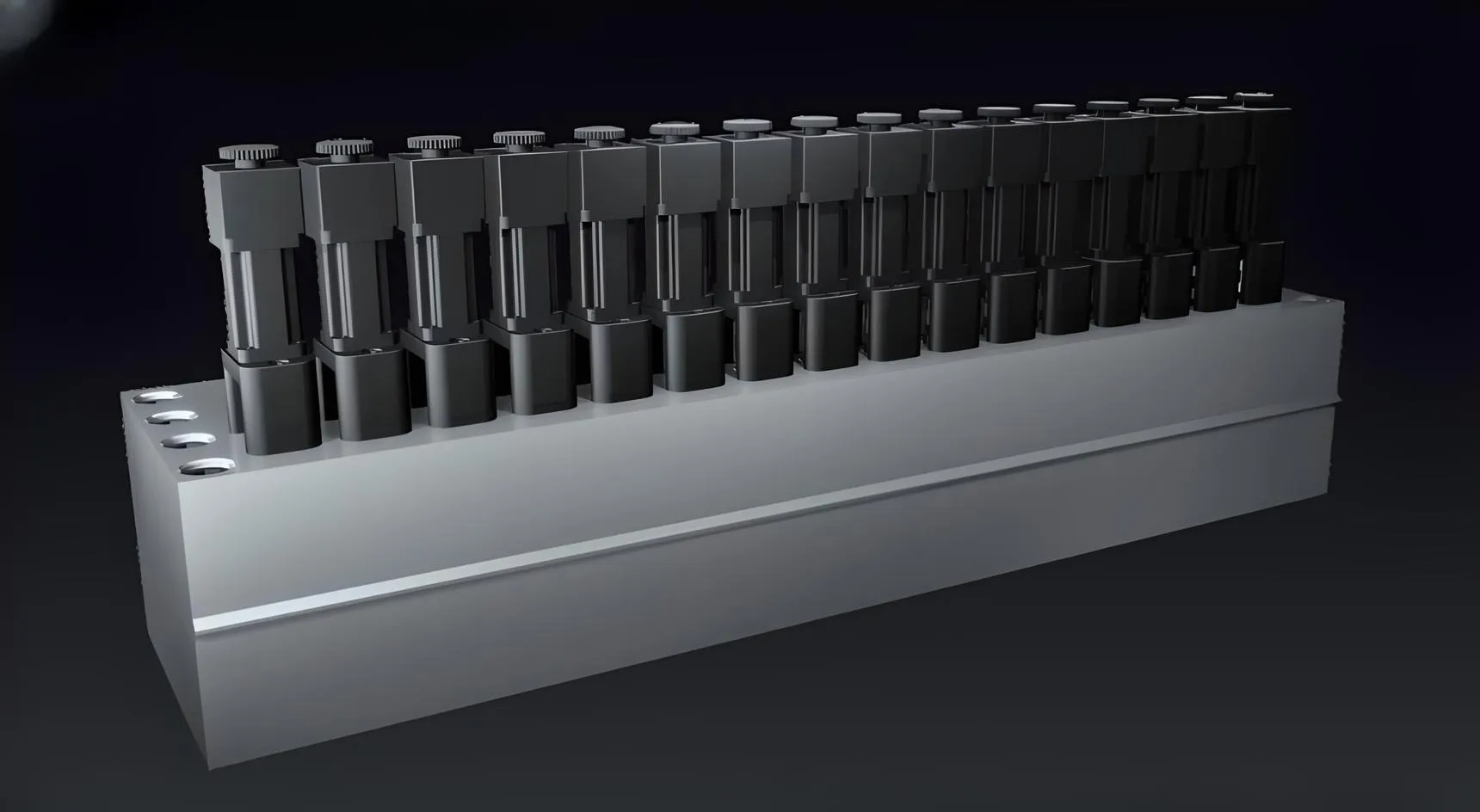

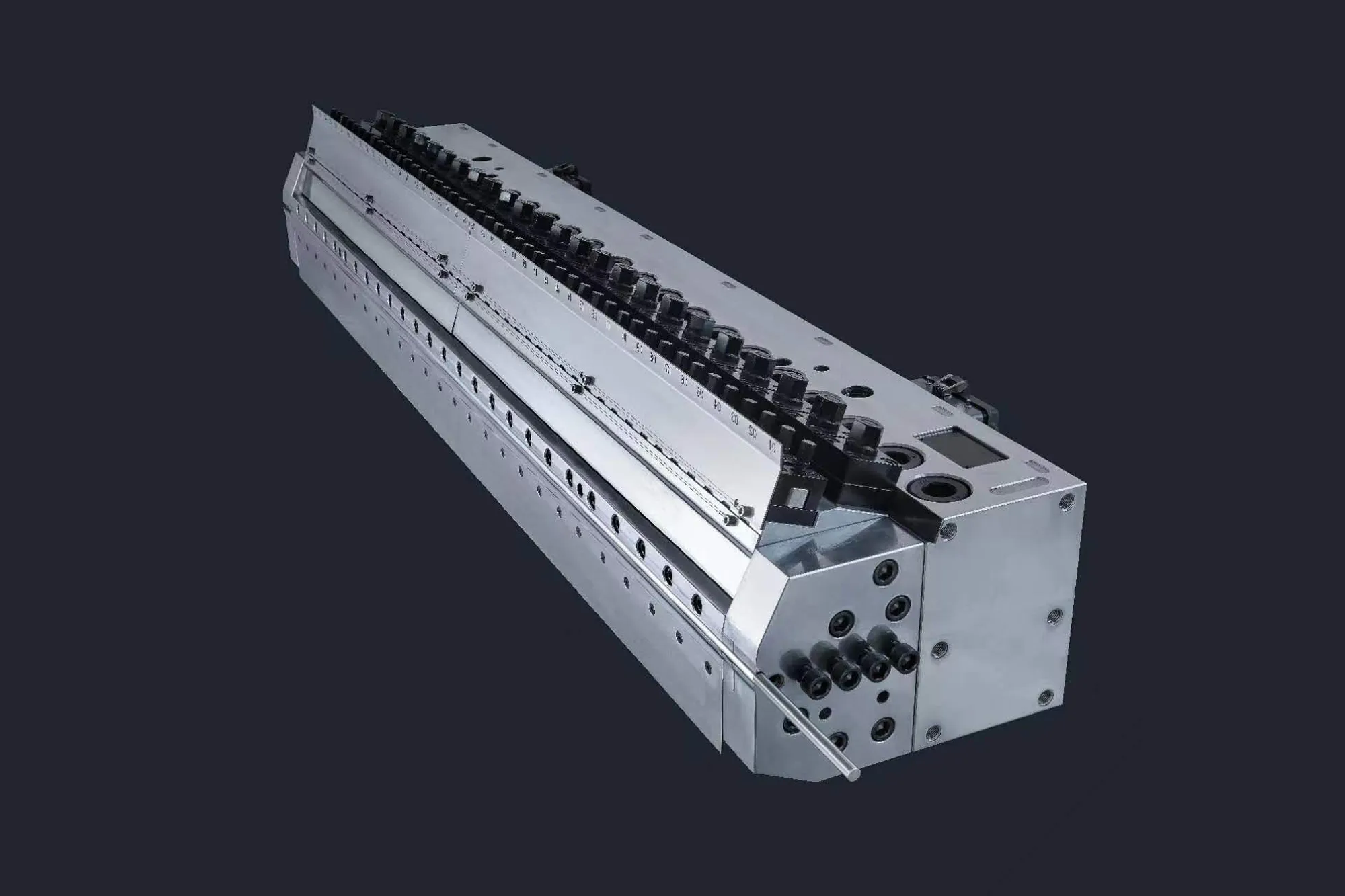

Slit-Coating-Die

Product Description

The hanger-type runner is designed based on the analysis of raw material characteristics (viscosity, temperature, rate).

The polishing finish of the mold cavity is O.Olum - 0.06um, and the surface finish of the melt flow hole is 0.03um-0.11um. It adopts internal heating of the heating rod or external heating of the heating plate, and hot oil circulation temperature control.

It is suitable for PET, PBT, PA, PP, PE, PTFE, PS, EMA, EVA, TPU, carbon fiber and other materials.

Get a quote

Technical Features

The slit coating die head offers excellent coating performance as the stable coating solution is uniformly distributed from the conveying system through the inlet flow to the shaping zone of the die head before reaching the outlet and finally the substrate, accommodating a range of different viscosity solutions and solids simultaneously, offering greater adaptability than transfer coating processes.

By closely controlling the flow rate of the solution and the relative speed of the substrate, the slit coating is easy to control in the thickness range of 10nm to 100 microns and can be changed with different thickness shims or fine adjustment devices to produce a wide range of thicknesses.

The products are suitable for a wide range of applications such as electronics, medical industry, optical instruments, etc.

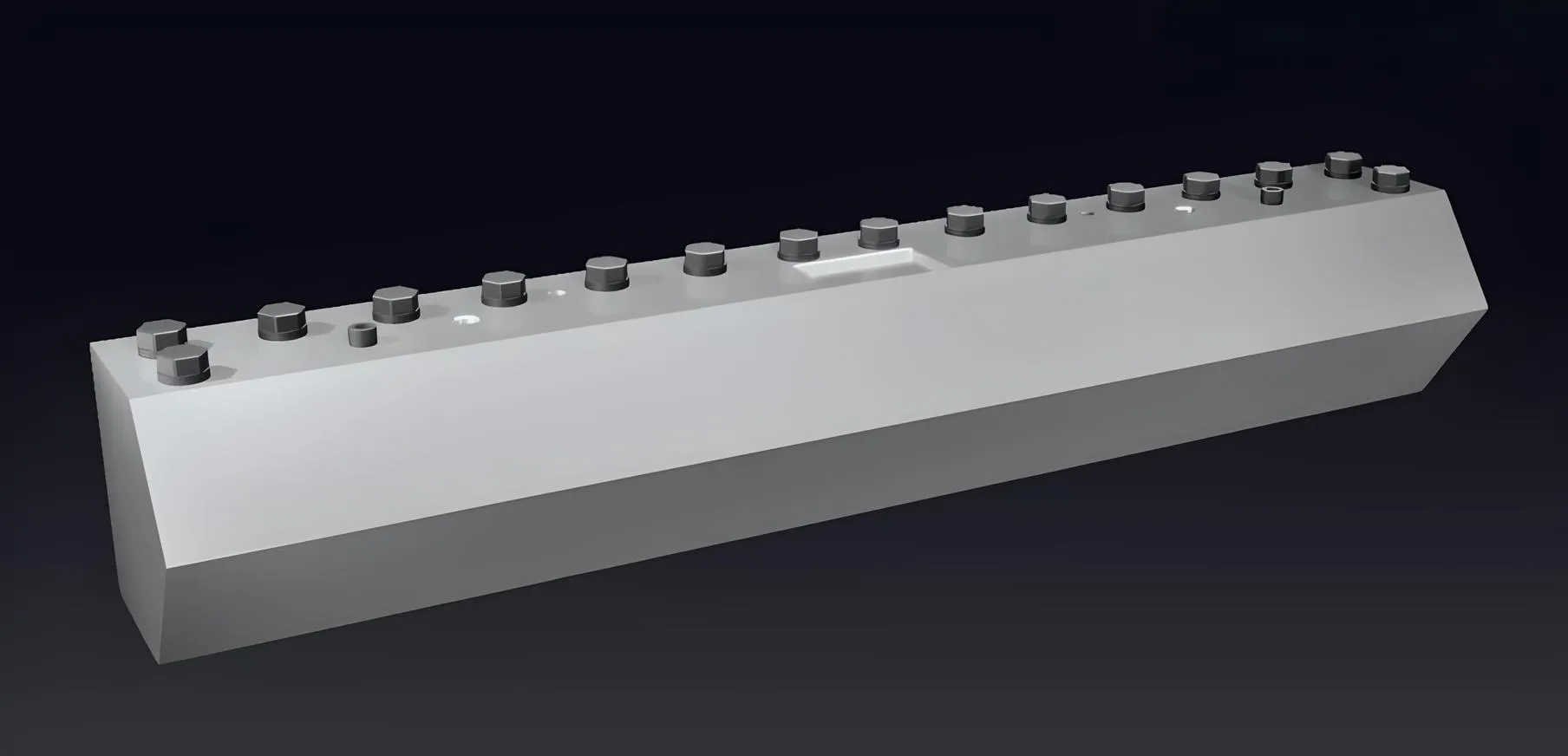

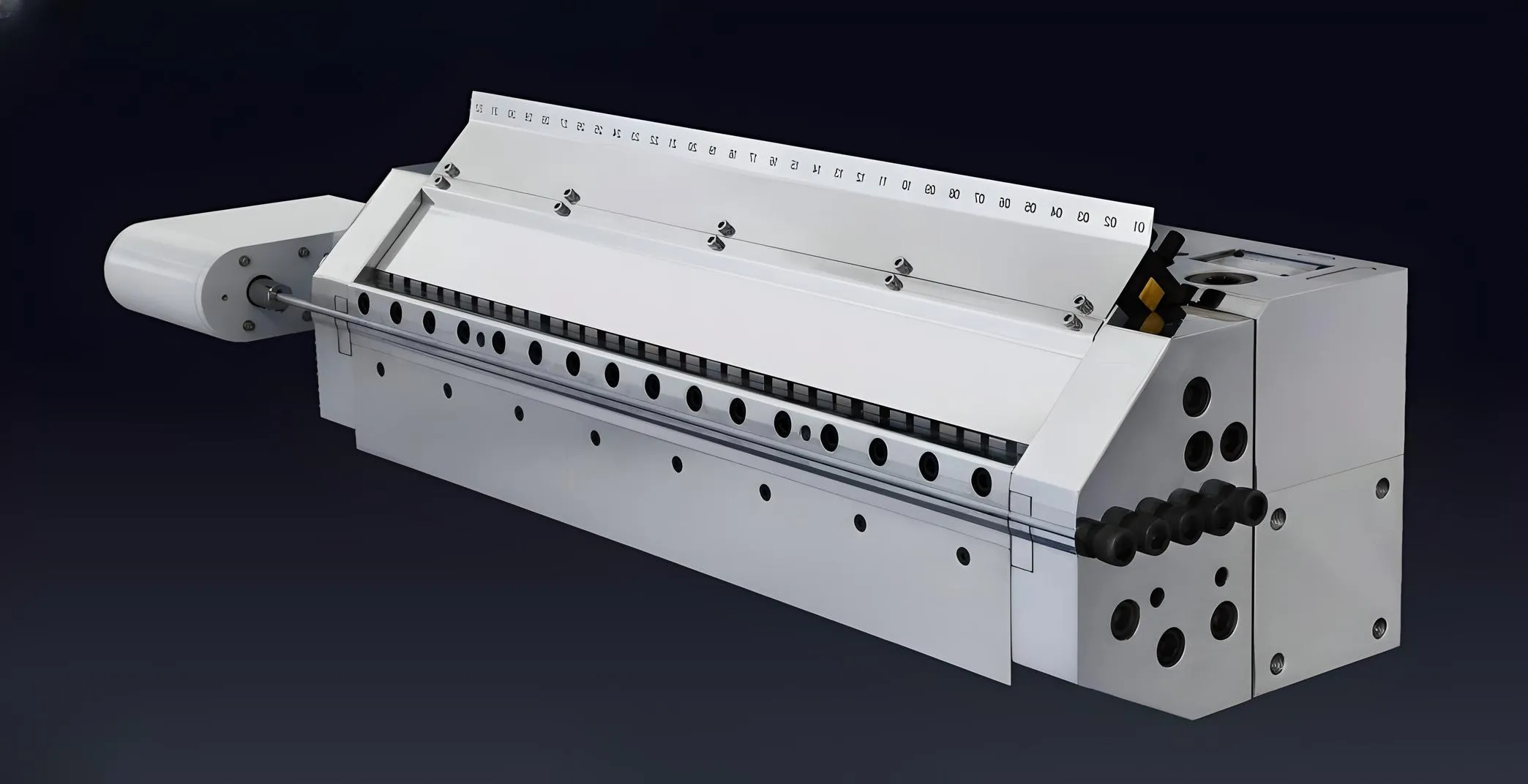

Roll-on,non-scratch coating die

Product Description

The hanger-type runner is designed based on the analysis of raw material characteristics (viscosity, temperature, rate).

The polishing finish of the mold cavity is O.Olum - 0.06um, and the surface finish of the melt flow hole is 0.03um-0.10um. It adopts internal heating of the heating rod or external heating of the heating plate, and hot oil circulation temperature control.

It is suitable for PET, PBT, PA, PP, PE, PTFE, PS, EMA, EVA, TPU, carbon fiber and other materials.

Get a quote

Technical Features

Roll-on, scratch-free coating die: through the die, the active substance slurry is evenly coated onto the collector fluid;

Current coating dies commonly used in the lithium, electronic coating and PCB industries;

The scratch-free coating head is the core component in the coating field, and its function is to achieve uniform coating for the coating slurry;

Customised design of key parts such as cavity flow and runner lip according to the rheological characteristics of the customer's slurry, to provide higher quality and more precise coating requirements;

The coating head is equipped with a variety of adjustment methods to provide a greater variety of options for the customer's needs;

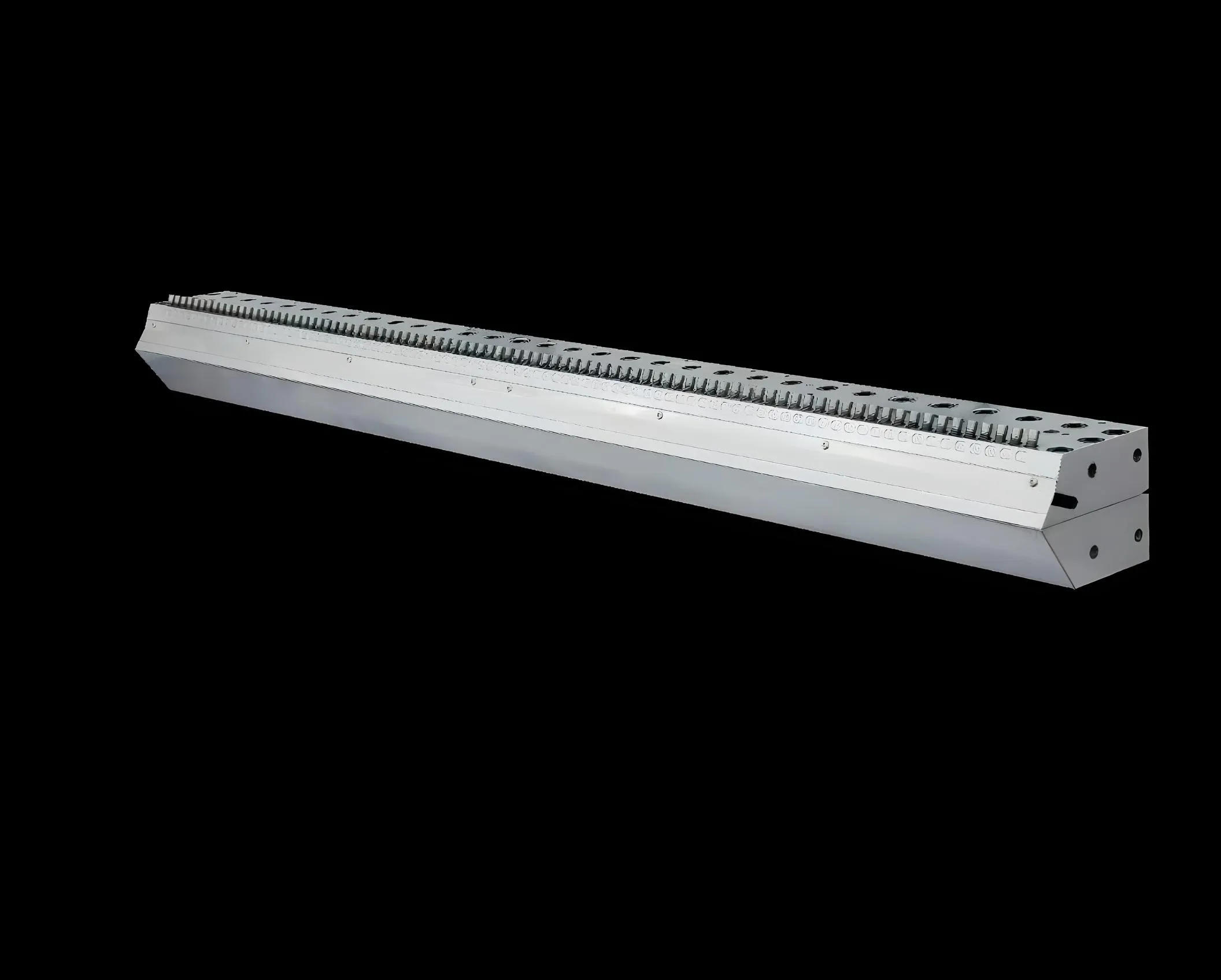

Roller coating die

Product Description

The hanger-type runner is designed based on the analysis of raw material characteristics (viscosity, temperature, rate).

The polishing finish of the mold cavity is O.Olum - 0.06um, and the surface finish of the melt flow surface is 0.03um-0.09um. It adopts internal heating of the heating rod or external heating of the heating plate, and hot oil circulation temperature control.

It is suitable for PET, PBT, PA, PP, PE, PTFE, PS, EMA, EVA, TPU, carbon fiber and other materials.

Get a quote

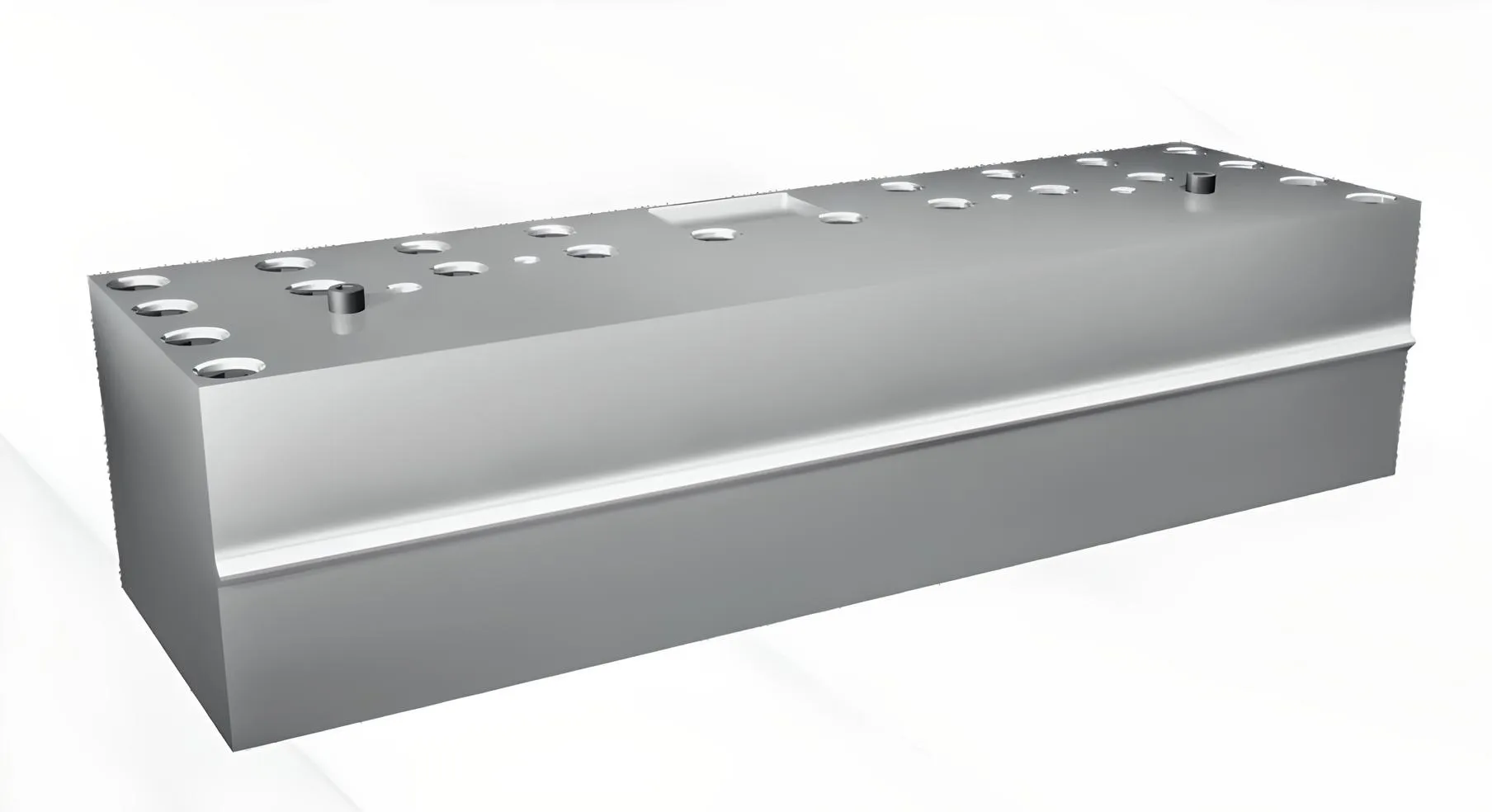

Slit type coating die

Product Description

The hanger-type runner is designed based on the analysis of raw material characteristics (viscosity, temperature, rate).

The polishing finish of the mold cavity is O.Olum - 0.06um, and the surface finish of the melt flow surface is 0.03um-0.08um. It adopts internal heating of the heating rod or external heating of the heating plate, and hot oil circulation temperature control.

It is suitable for PET, PBT, PA, PP, PE, PTFE, PS, EMA, EVA, TPU, carbon fiber and other materials.

Get a quote

Technical Features

The thickness of the product is controlled by shim change, opening the material flow to form a continuous coating. By controlling the position and movement direction of the slit die head, the coating can be uniformly applied to the surface of the substrate.

The products are suitable for various fields such as electronic products, medical industry, optical instruments and so on.

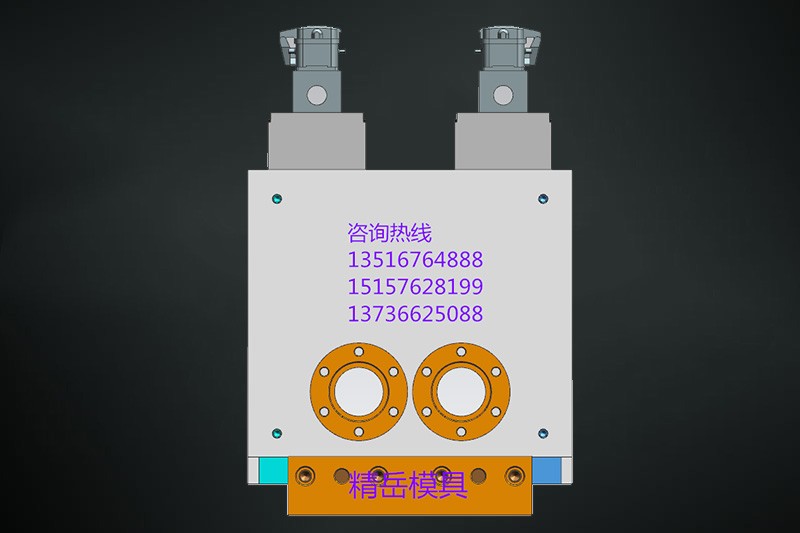

Adjustable slot coating die

Product Description

The hanger-type runner is designed based on the analysis of raw material characteristics (viscosity, temperature, rate).

The polishing finish of the mold cavity is O.Olum - 0.06um, and the surface finish of the melt flow hole is 0.03um-0.07um. It adopts internal heating of the heating rod or external heating of the heating plate, and hot oil circulation temperature control.

It is suitable for PET, PBT, PA, PP, PE, PTFE, PS, EMA, EVA, TPU, carbon fiber and other materials.

Get a quote

Technical Features

Adjustable slit coating die is designed to fine-tune the thickness of the product through the elastic deformation of the die runner surface by means of bolt adjustments.

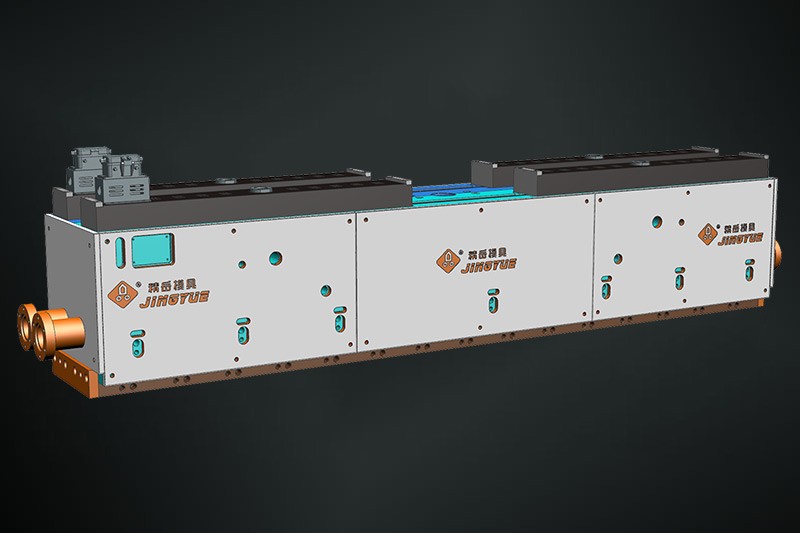

Closed-loop narrow slit coating die

Product Description

The hanger-type runner is designed based on the analysis of raw material characteristics (viscosity, temperature, rate).

The polishing finish of the mold cavity is O.Olum - 0.06um, and the surface finish of the melt flow surface is 0.03um-0.06um. It adopts internal heating of the heating rod or external heating of the heating plate, and hot oil circulation temperature control.

It is suitable for PET, PBT, PA, PP, PE, PTFE, PS, EMA, EVA, TPU, carbon fiber and other materials.

Get a quote

Technical Features

Shut-loop narrow slit coating die can achieve the upper and lower closed-loop precision adjustment, can be manually and automatically switched on-line, the way of coating can be continuous and intermittent, to ensure the consistency of the transverse surface density.

Special steel is used to ensure that the product is coated evenly and without streaks.

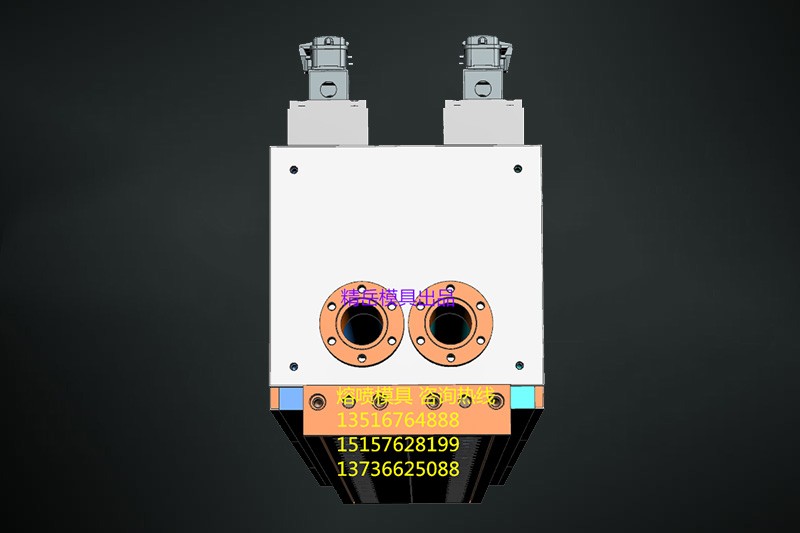

Calctie coating die

Product Description

The hanger-type runner is designed based on the analysis of raw material characteristics (viscosity, temperature, rate).

The polishing finish of the mold cavity is O.Olum - 0.06um, and the surface finish of the melt flow surface is 0.03um-0.05um. It adopts internal heating of the heating rod or external heating of the heating plate, and hot oil circulation temperature control.

It is suitable for PET, PBT, PA, PP, PE, PTFE, PS, EMA, EVA, TPU, carbon fiber and other materials.

Get a quote

Technical Features

Calcite coating on the fluid viscosity is low in very thin dry film conditions to achieve accurate coating of the product, we use a special runner design, high-precision coating die head can ensure the stability of product uniformity.

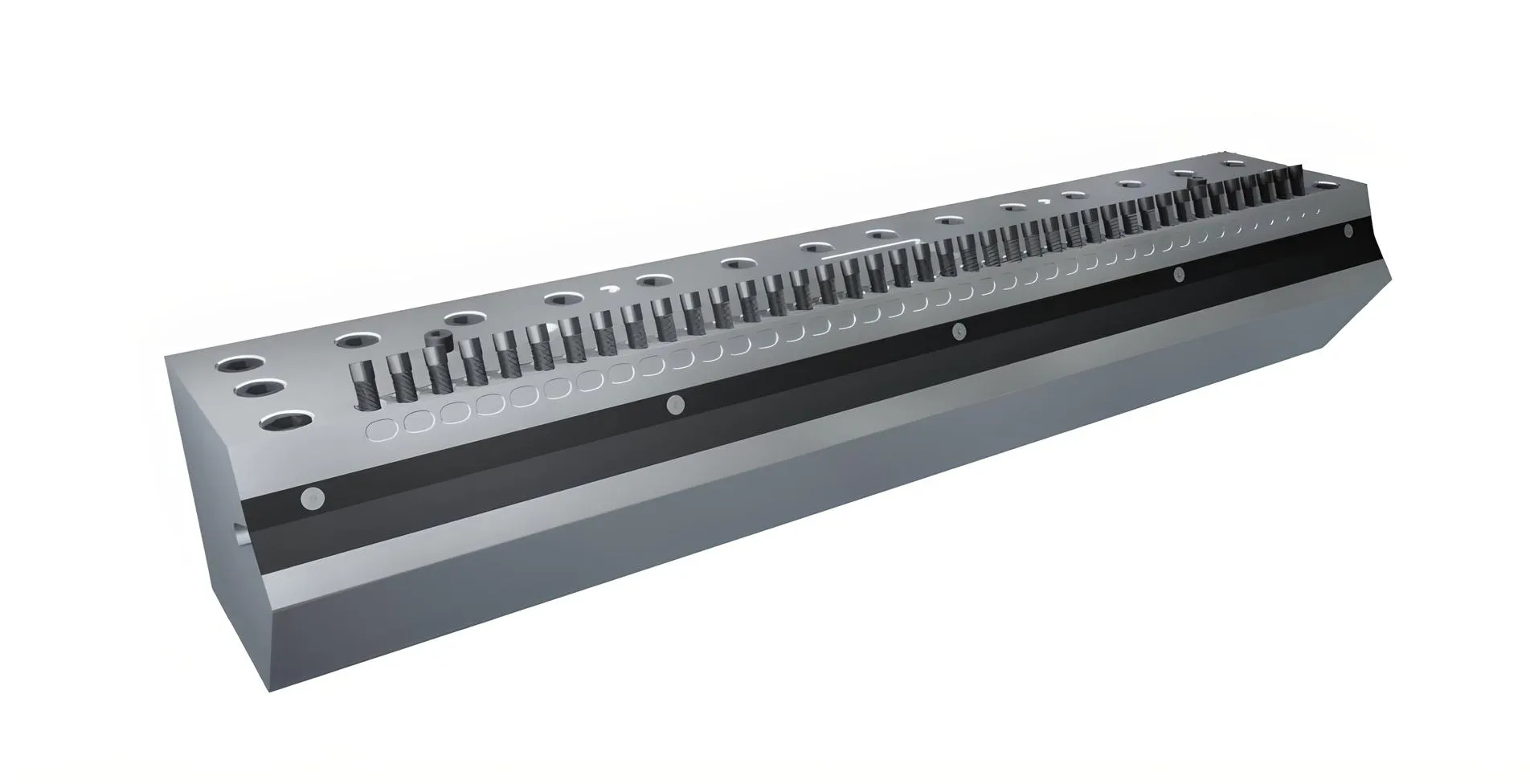

Meltblown die

Product Description

The hanger-type runner is designed based on the analysis of raw material characteristics (viscosity, temperature, rate).

The polishing finish of the mold cavity is O.Olum - 0.06um, and the surface finish of the melt flow surface is 0.03um-0.04um. It adopts internal heating of the heating rod or external heating of the heating plate, and hot oil circulation temperature control.

It is suitable for PET, PBT, PA, PP, PE, PTFE, PS, EMA, EVA, TPU, carbon fiber and other materials.

Get a quote

Technical Features

The conventional die head model is 430mm-2400mm, and the meltblown head (spinneret) diameter is 0.2mm-0.3mm.

The center distance of the spinneret hole is between 0.7mm-0.8mm

Suitable for process temperature below 350, carbon fiber 330-350, PP, PET below 300

Suitable for production output of 30-50KG/hour, which can also be determined according to the production line configuration capacity.

Scope of application

(1) Medical and health fabrics: surgical gowns, protective clothing, disinfection wraps, masks, diapers, sanitary napkins, etc.;

(2) Home decoration fabrics: wall coverings, tablecloths, bed sheets, bedspreads, etc.;

(3) Clothing fabrics: lining, adhesive interlining, wadding, shaping cotton, various synthetic leather base fabrics, etc.;

(4) Industrial fabrics: filter materials, insulation materials, cement packaging bags, geotextiles, covering fabrics, etc.;

(5) Agricultural fabrics: crop protection fabrics, seedling raising fabrics, irrigation fabrics, thermal insulation curtains, etc.;

(6) Others: space cotton, thermal insulation and sound insulation materials, oil-absorbing felt, cigarette filters, tea bags, etc.;

<< 1 2 >>
